Product Details:
|
| Model Number: | 32pins Fpc Cable | Connector: | FPC CABLE |
|---|---|---|---|
| Base Material: | Polyimide, FR-4 | Board Thickness: | 0.11mm-0.5mm |
| Min. Hole Size: | 0.2mm/0.3mm | Characteristics: | Wiring High Density, Low Weight, Small Thickness |
| FPC Thickness: | 1oz 1/2oz And 1/3 Oz | ||
| High Light: | Gold Plate FFC FPC Cable,0.3 Mm FFC FPC Cable,fpc cable 0.3 mm pitch |
||

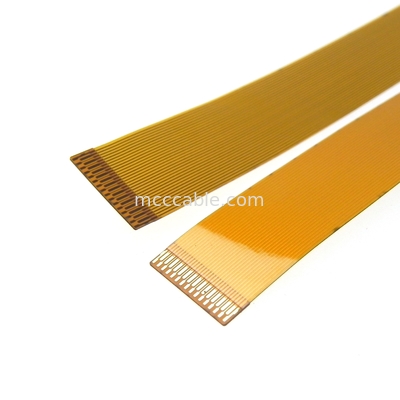

FPC Flexible Flat Cable 0.3 mm Pitch 21pin Length 60mm board LVDS cable
| Thickness | 0.050mm—0.2mm |
| Through Hole diameter(Max) | 6.5mm |
| Through hole size(min) | 0.2mm |
| Through hole tolerance | ±0.025mm |
| Hole copper thickness | Min8μm Max38μm |
| Min line width/space | 0.04/0.04 mm |
| Etching Tolerance | ±20％ |
| The accuracy of the pattern on the hole | ±2mil |
| Punching size(max) | φ3.175mm |
| Punching size(min) | φ2.0mm |
| Punching aperture Thickness(Max) | 0.2mm |
FFC Flat Cable Application:
1. FPC wiring harness for Car DVD
2. FPC wiring harness for Displayer
3. FPC wiring harness for smart lock
4. FPC wiring harness for Airbag line
5.FPC wiring harness for Inkjet printer
6. FPC wiring harness for Flat screen; TV
7. FPC wiring harness for Digital camera
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for
you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make
